Ravi Industries

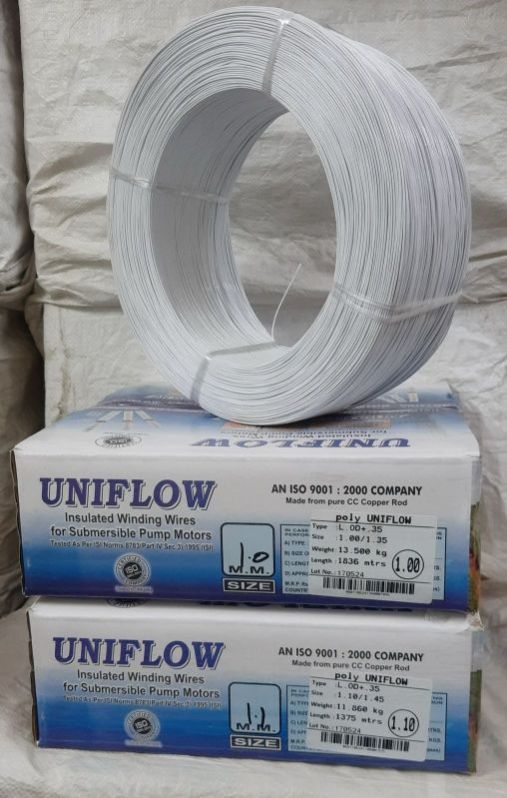

Submersible Poly Winding Wire UNIFLOW




We manufacture high quality Submersible Poly Winding Wire under the brand name of POLY UNIFLOW. POLY UNIFLOW poly winding wires are specially insulated with polyester & poly propylene to ensure their full capability to with stand extremely high temperature and mechanical abrasion. The copper conductor used in the winding wires is of the required purity CC ROD & conductivity which is drawn and annealed to the requirement authoring to standard. Multistranded and highly flexible Submersible Poly Winding Wire is also made available to suit the specific needs of the clients. For all these reasons and more, we, today, are considered to be the best Submersible Poly Winding Wire manufacturer and supplier in India.

POLY UNIFLOW Poly Submersible Winding Wires
POLY UNIFLOW poly winding wires are specially insulated with polyester & poly propylene to ensure they are fully capable to with stand extremely high temperature and mechanical abrasion. The copper conductor used in the Winding wires is of the required purity & conductivity which is drawn and annealed to the requirement authoring to standard.

Salient Features

  • POLY UNIFLOW Poly Insulated Winding Wires are TESTED as per IS: 8783(Part4/Sec3).
  • Extremely flexible
  • Durable
  • Require low maintenance

Specifications

Thickness 0-5mm, 10-15mm, 15-20mm, 20-25mm, 5-10mm
Application Electrical Appliances
Purity 99.99%
Condition New
Packaging Plastic Roll, Wooden Roll
Features Excellent Ductile Strength, High Tensile Strength, Longer Life


Specifications

SWG. Gauge No Size Conductor Dia (App).inch Size Conductor Dia (App).mm Overall diameter mm Weight kg/Km Max Conductor Resostamce at 20*C (Ohms /Km)
23.0 0.24 0.60 1.00 3.170 62.20
22.0 0.28 0.70 1.05 4.140 45.70
21.0 0.32 0.80 1.15 5.200 35.00
20.0 0.36 0.90 1.30 6.600 27.60
19.0 0.40 1.00 1.50 8.00 22.40
18.5 0.44 1.10 1.60 9.525 18.50
18.0 0.48 1.20 1.70 11.100 15.50
17.5 0.52 1.30 1.95 13.000 13.20
17.0 0.56 1.40 2.00 15.500 11.40
16.5 0.60 1.50 2.10 17.800 9.95
16.0 0.64 1.60 2.20 20.200 8.75
15.5 0.68 1.70 2.30 22.300 7.75
15.0 0.72 1.80 2.40 25.000 6.91
14.5 0.76 1.90 2.40 28.000 6.91
