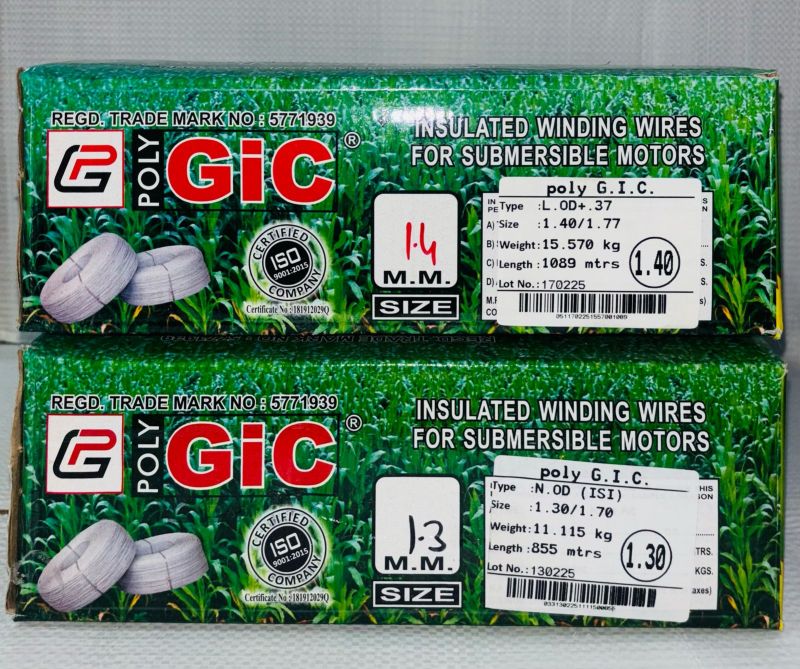

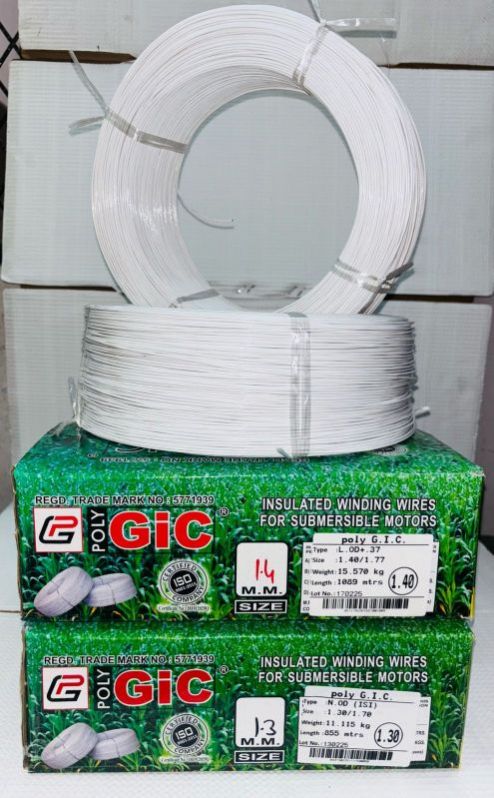

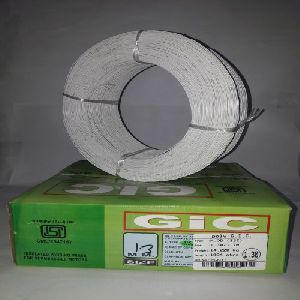

PVC Winding Wire

We manufacture high quality PVC Winding Wire under the brand name of G.I.C. G.I.C. PVC winding wires are specially insulated with PVC to ensure their full capability to with stand extremely high temperature and mechanical abrasion. The copper conductor used in the winding wires is of the required purity CC ROD & conductivity which is drawn and annealed to the requirement authoring to standard. Highly flexible PVC Winding Wire is also made available to suit the specific needs of the clients. For all these reasons and more, we, today, are considered to be the best PVC Winding Wire manufacturer and supplier in India.

PVC Winding Wires
PVC winding wires are specially insulated with PVC to ensure they are fully capable to with stand extremely high temperature and mechanical abrasion. The copper conductor used in the Winding wires is of the required purity & conductivity which is drawn and annealed to the requirement authoring to standard.

Salient Features :

• PVC Winding Wires are TESTED as per IS: 8783 (Part4/Sec1).
• Extremely flexible
• Durable
• Require low maintenance

Specifications :

SWG. Gauge No	Size Conductor Dia (App).inch	Size Conductor Dia (App).mm	Overall diameter mm	Weight kg/Km	Max Conductor Resostamce at 20*C (Ohms /Km)
23.0	0.24	0.60	1.00	3.170	62.20
22.0	0.28	0.70	1.05	4.140	45.70
21.0	0.32	0.80	1.15	5.200	35.00
20.0	0.36	0.90	1.30	6.600	27.60
19.0	0.40	1.00	1.50	8.00	22.40
18.5	0.44	1.10	1.60	9.525	18.50
18.0	0.48	1.20	1.70	11.100	15.50
17.5	0.52	1.30	1.95	13.000	13.20
17.0	0.56	1.40	2.00	15.500	11.40
16.5	0.60	1.50	2.10	17.800	9.95
16.0	0.64	1.60	2.20	20.200	8.75
15.5	0.68	1.70	2.30	22.300	7.75
15.0	0.72	1.80	2.40	25.000	6.91
14.5	0.76	1.90	2.40	28.000	6.91
